Double (Variable) Speed Frequency Inverter Driven Motors
Thermistor Application in Lifting Motors
Frequency Inverter Control System
Over Weight Protection
Remote Control

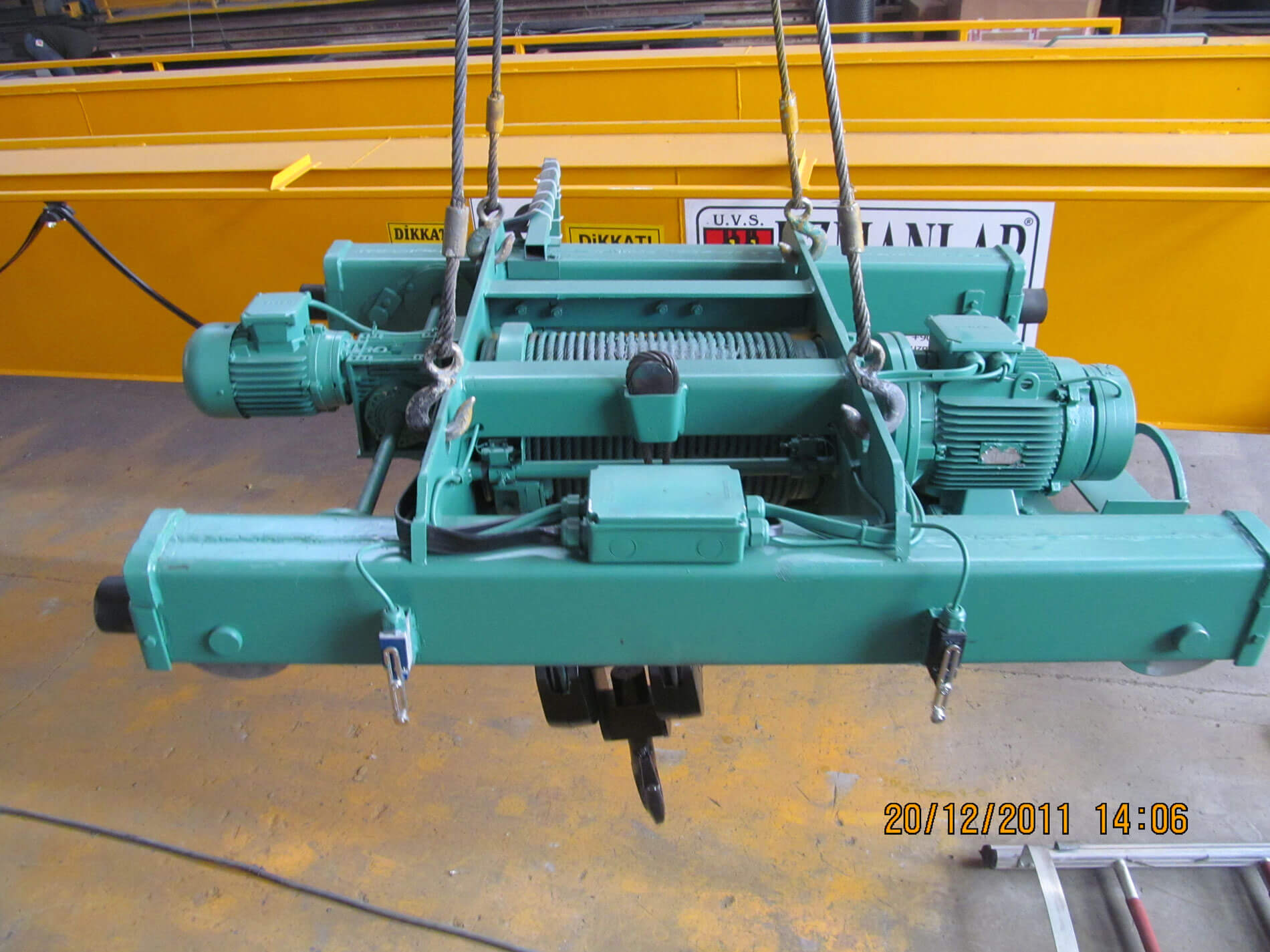

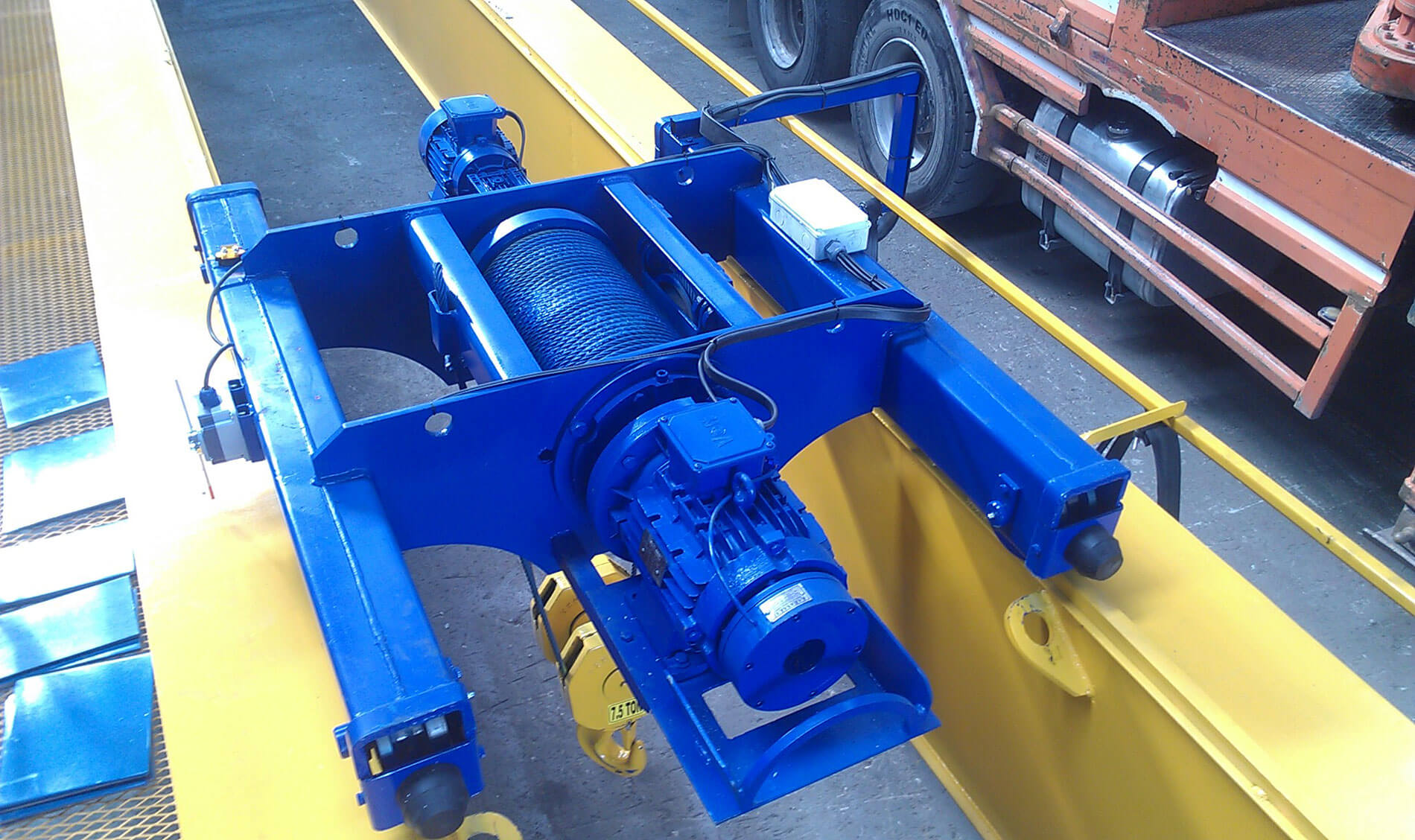

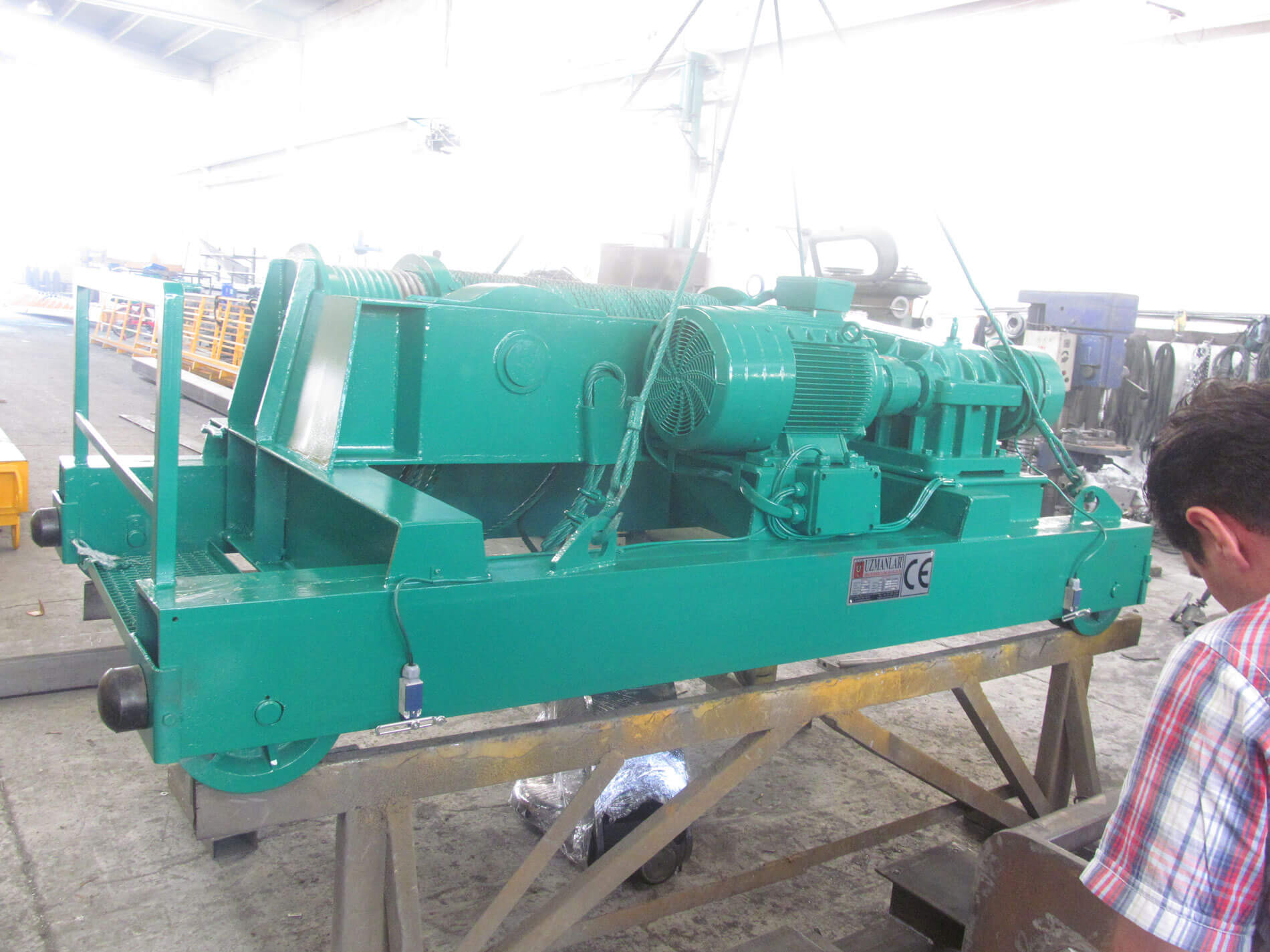

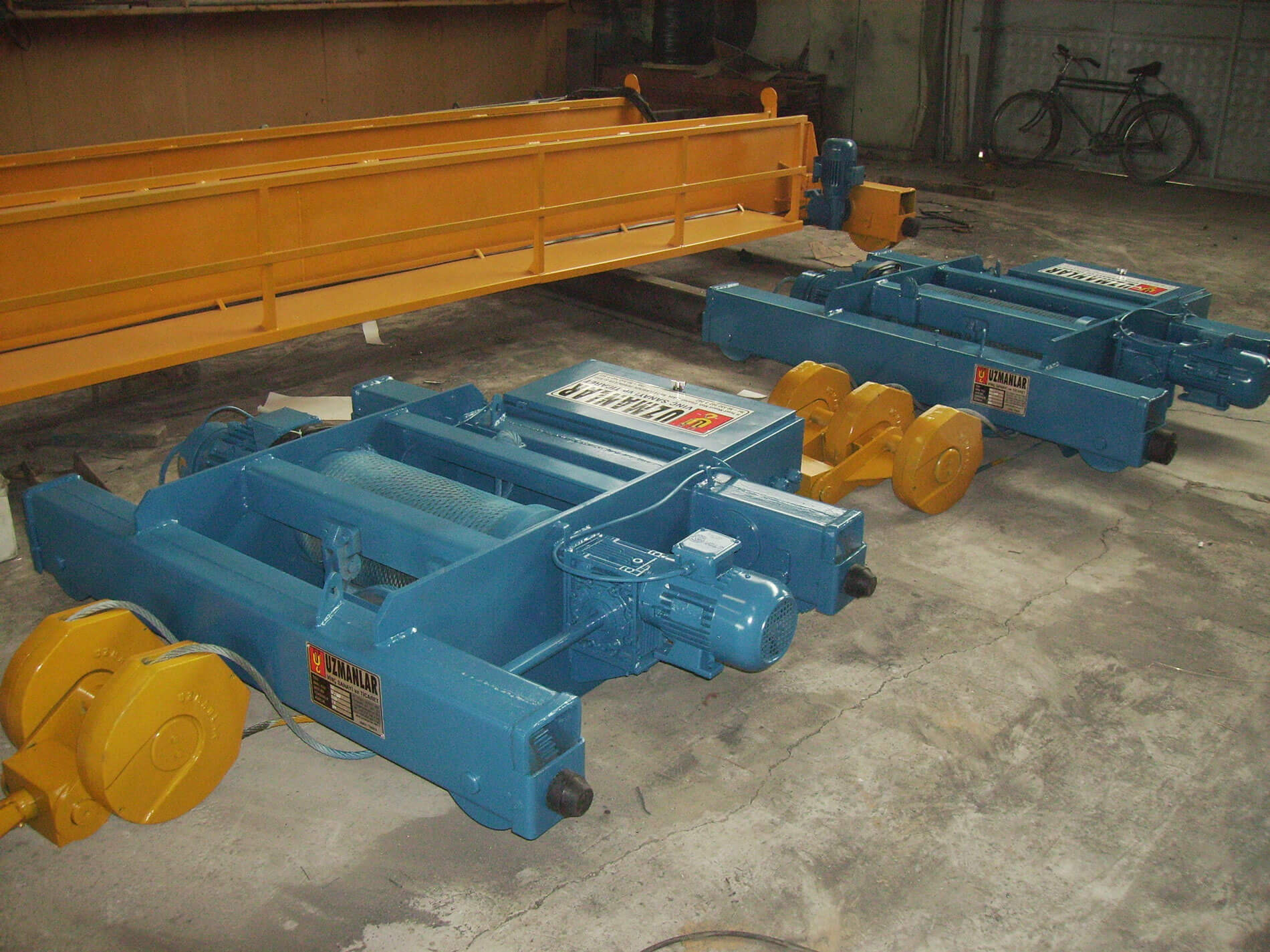

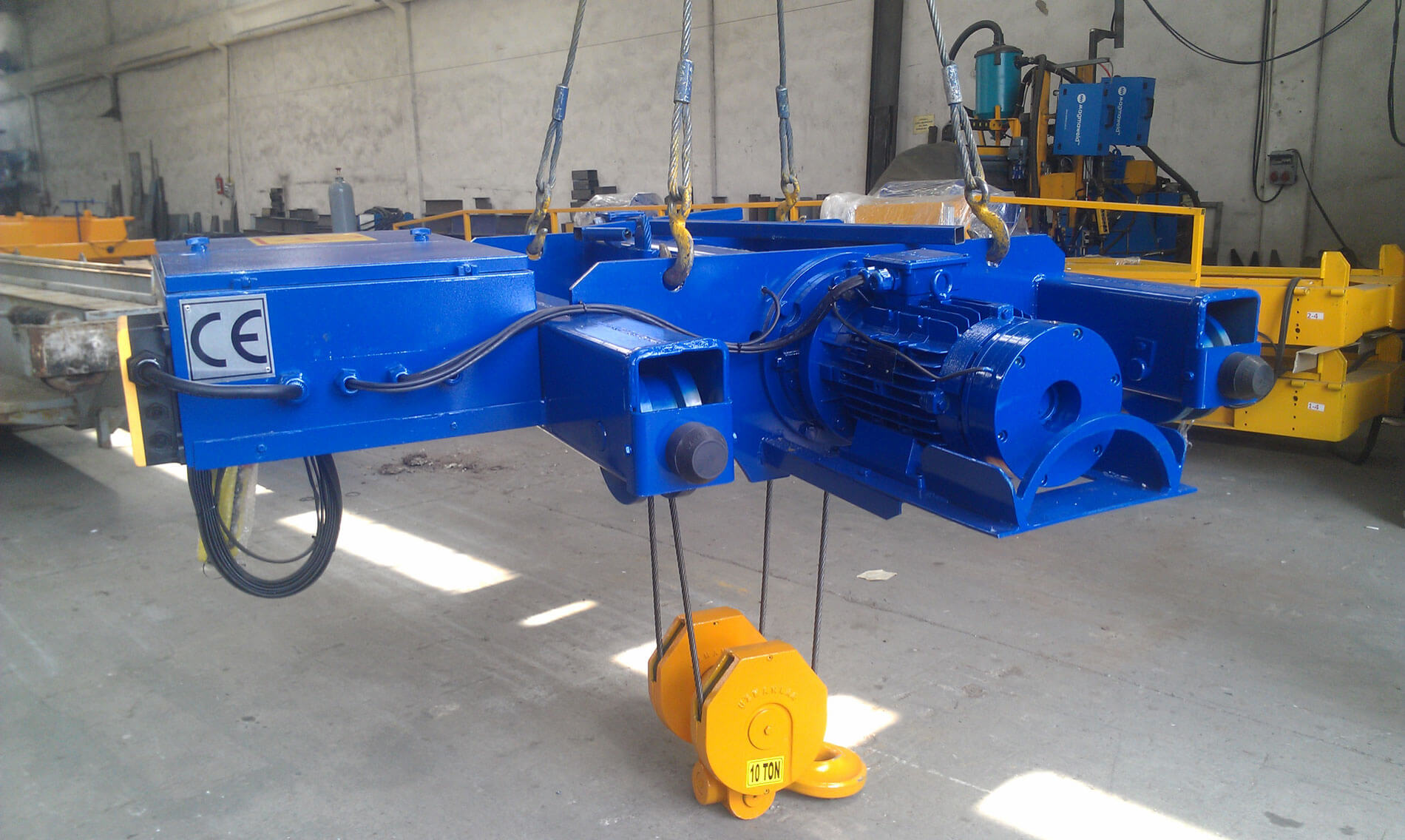

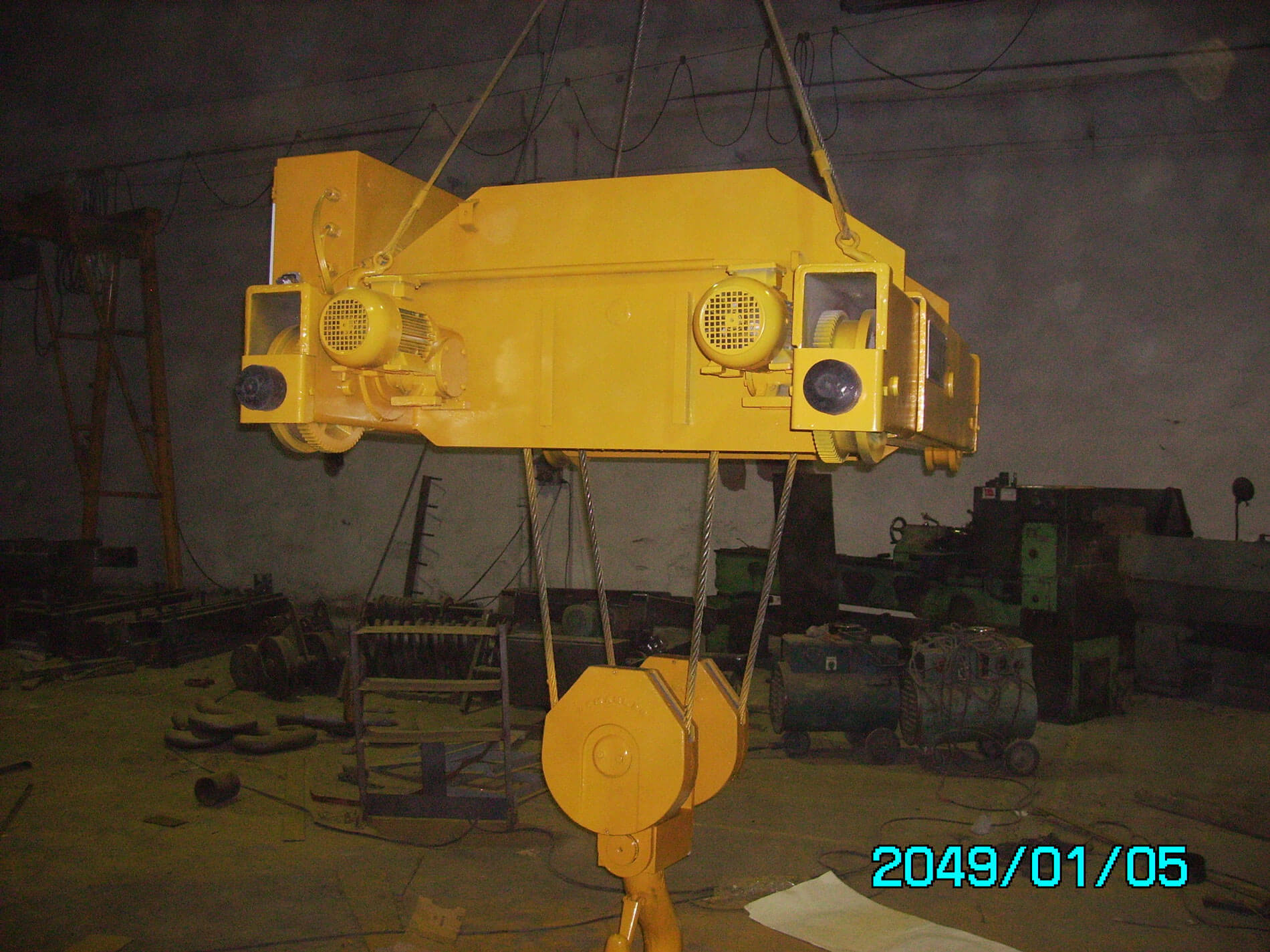

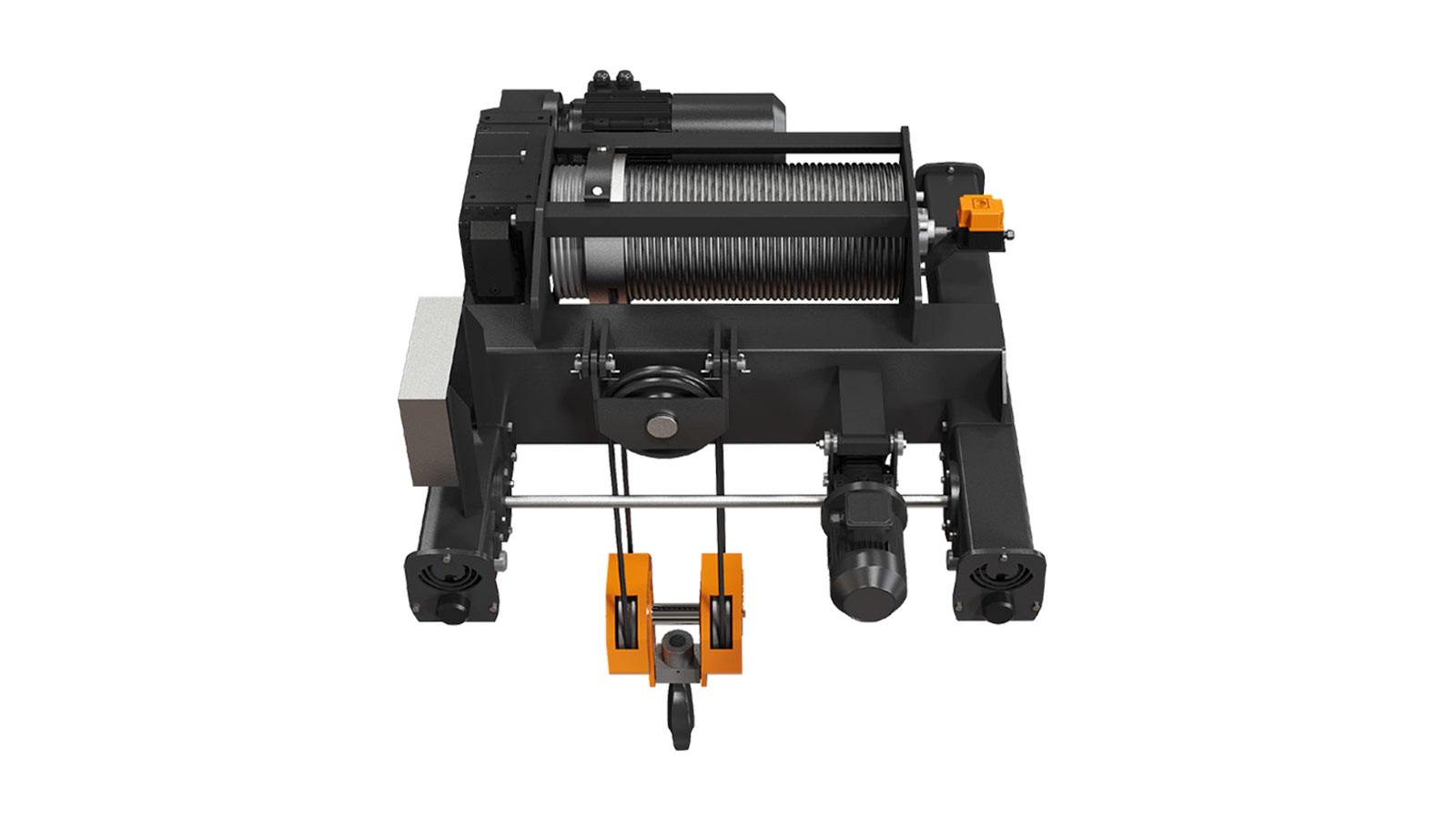

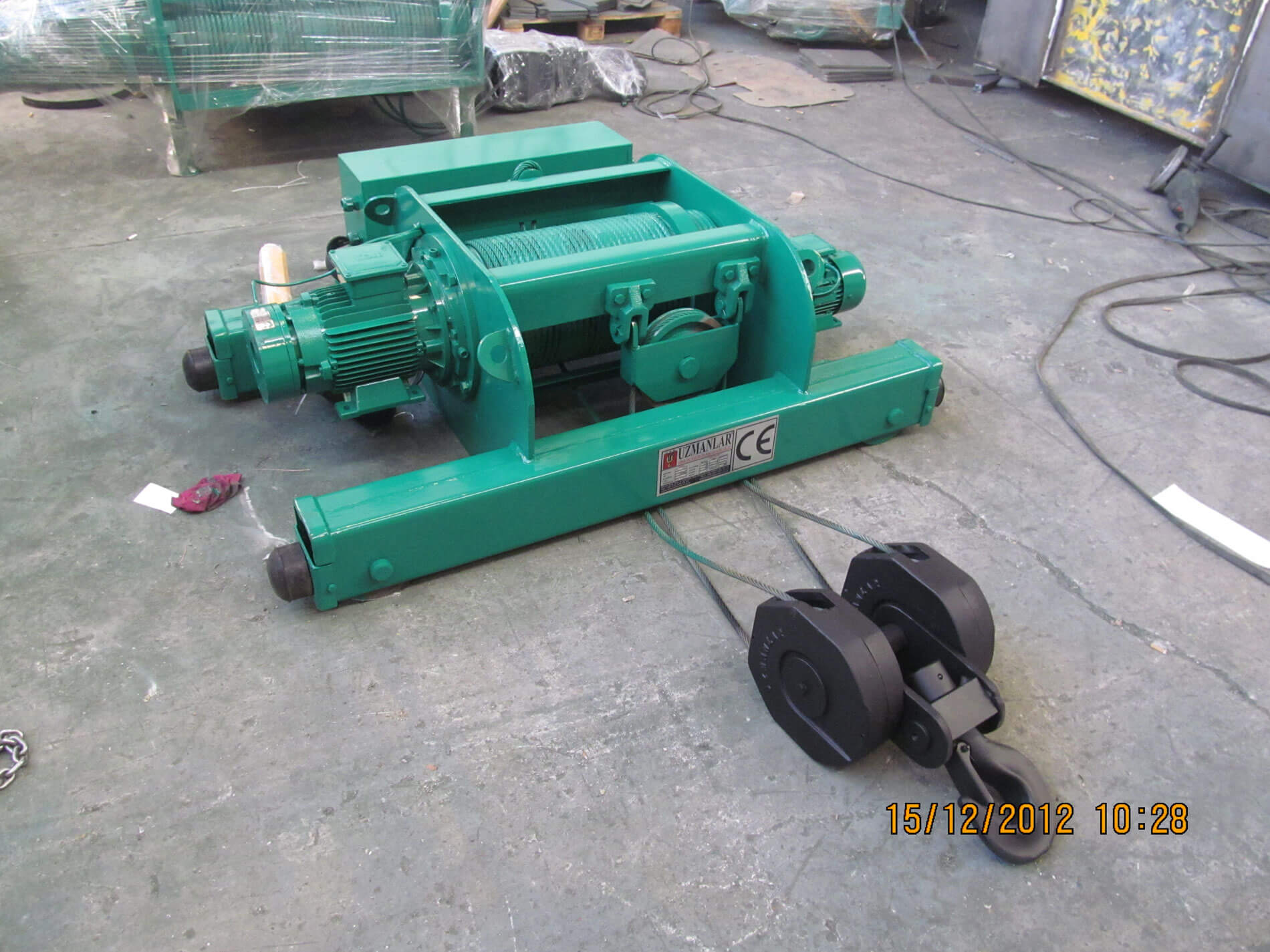

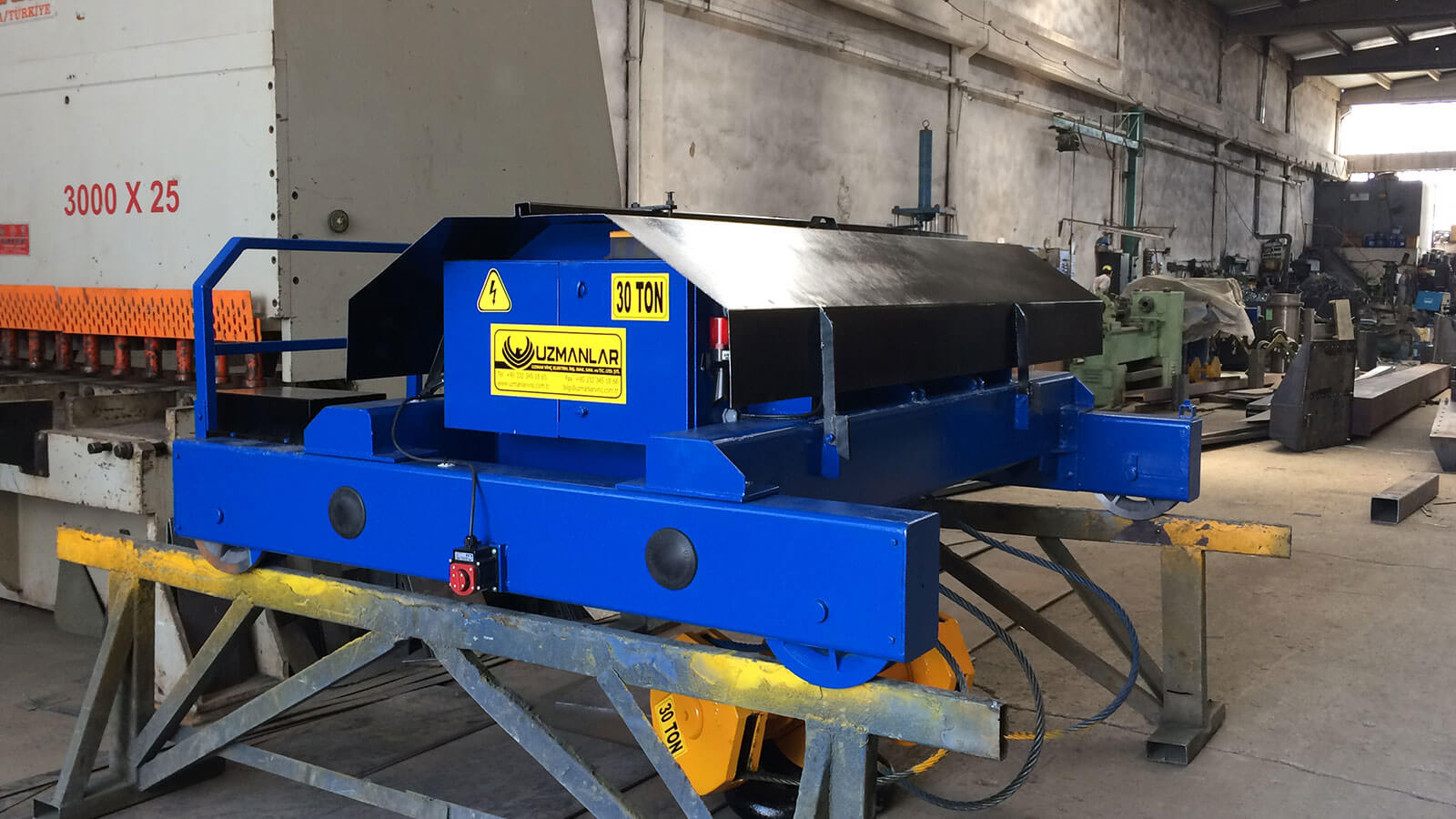

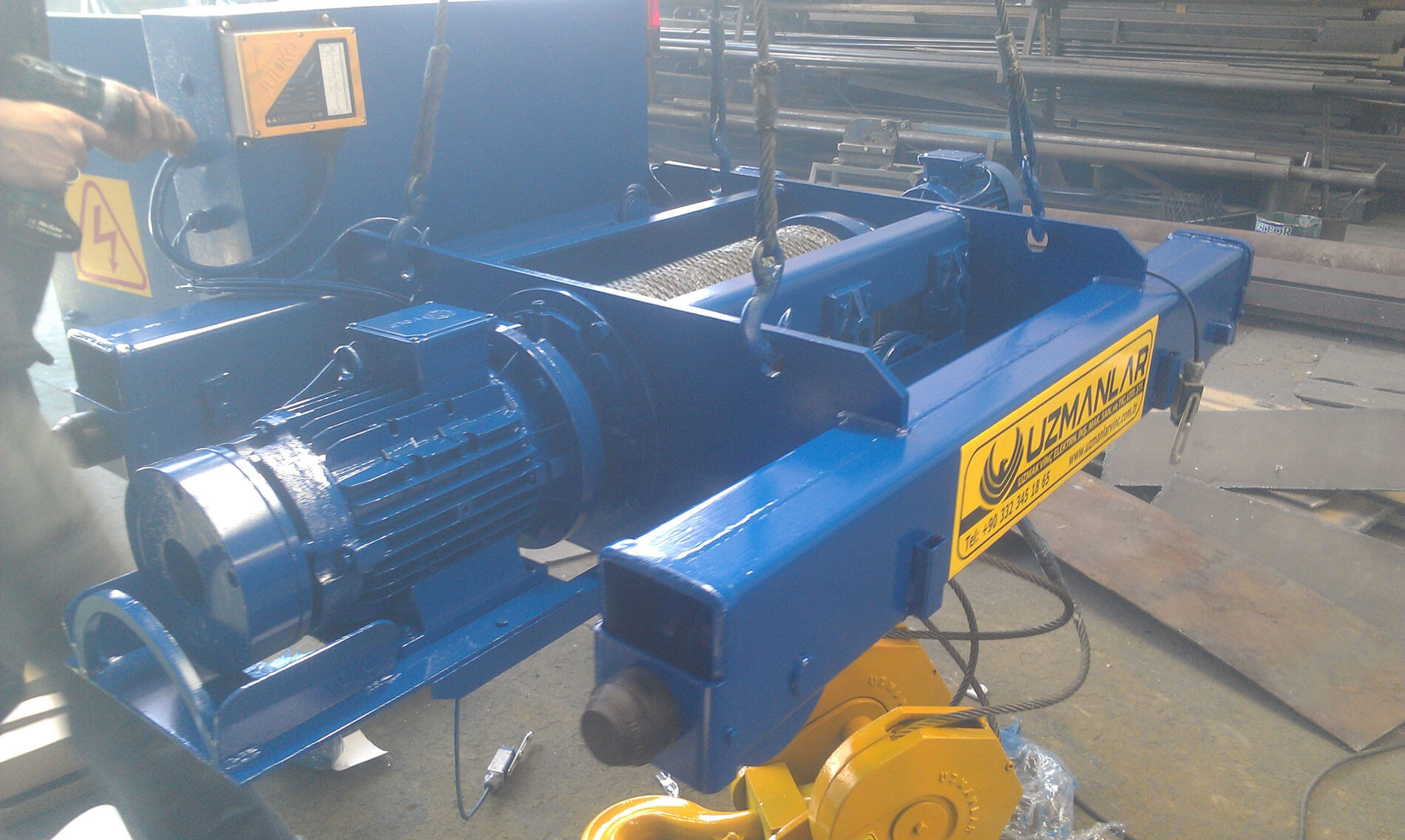

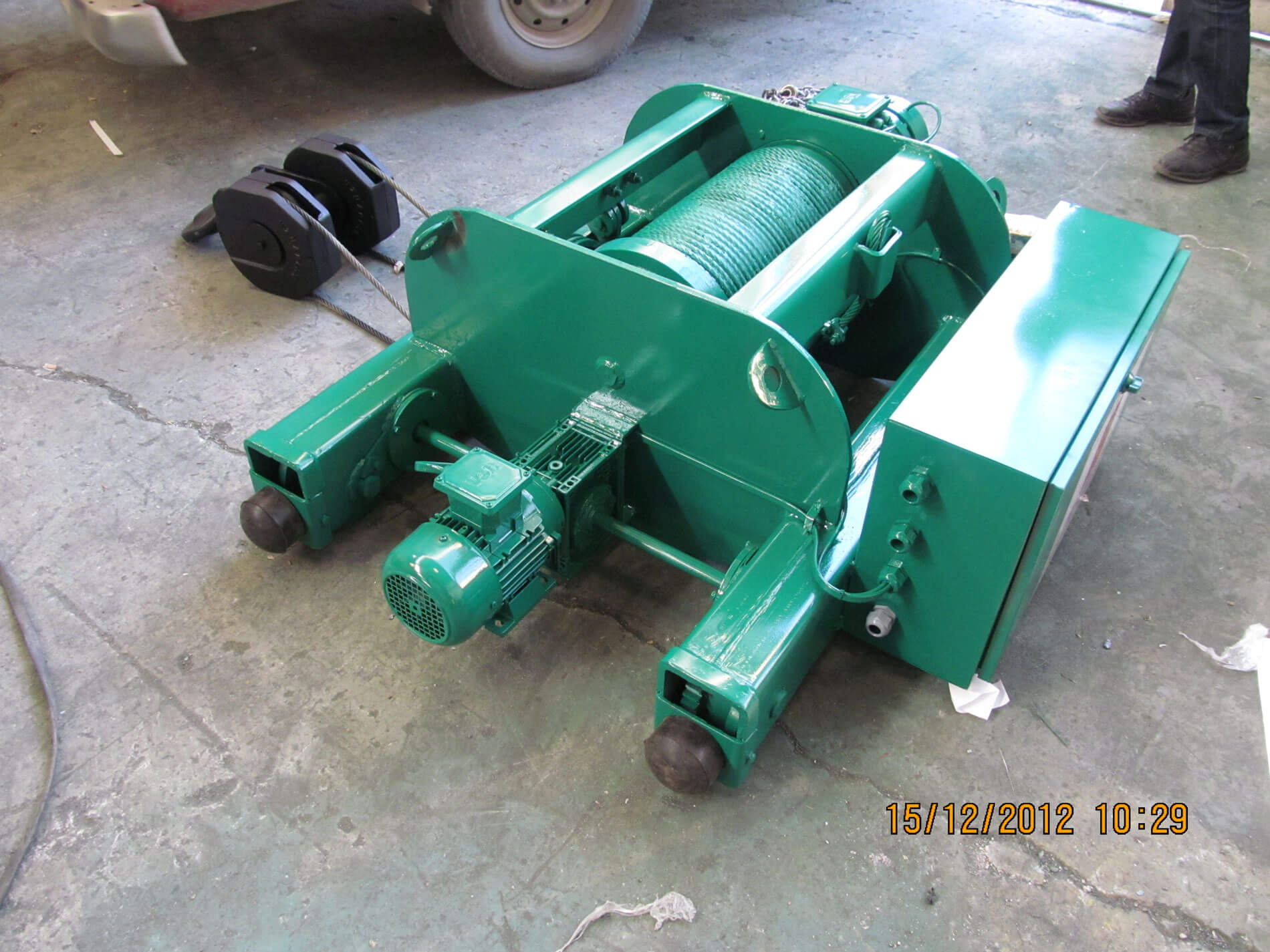

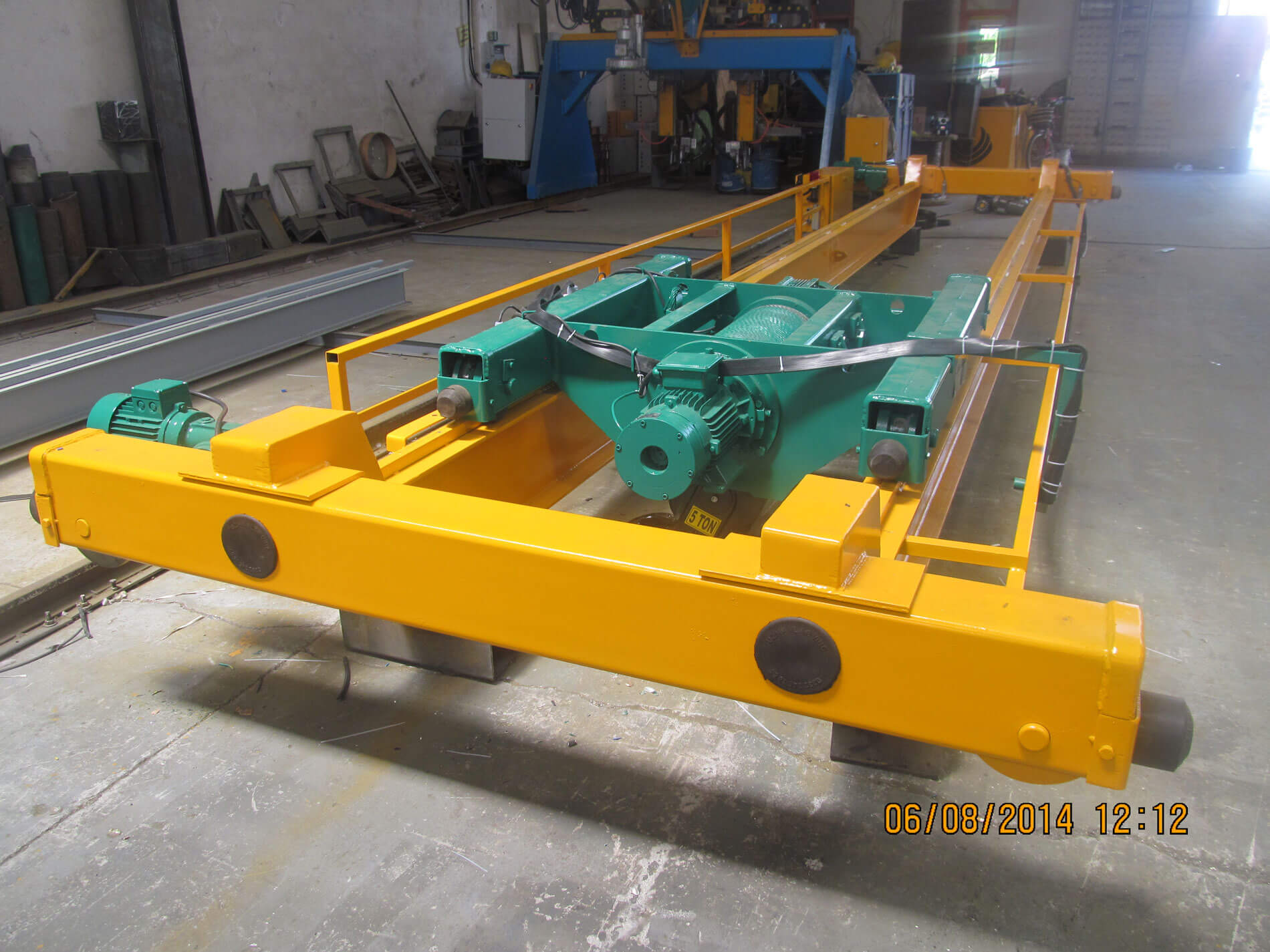

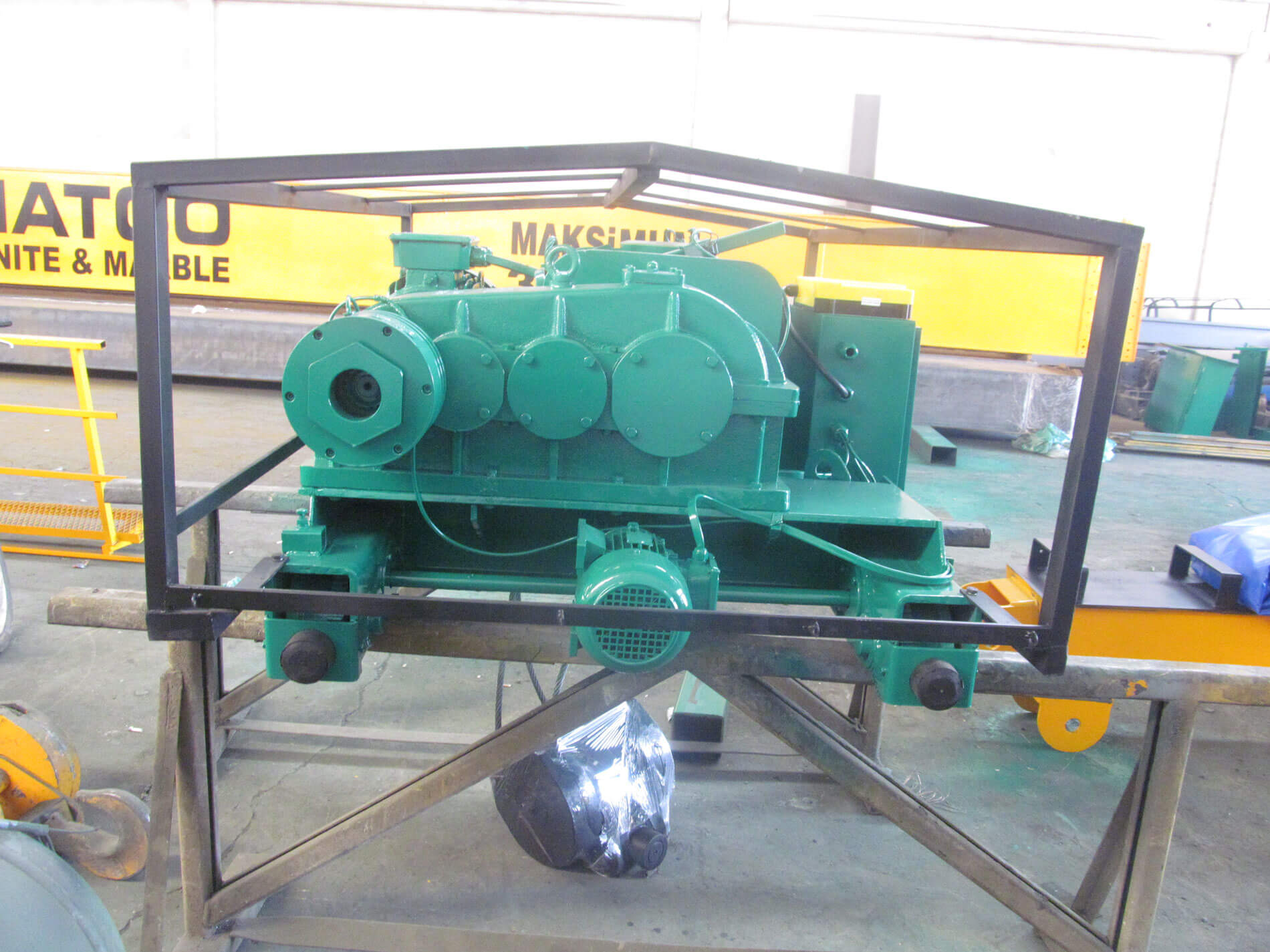

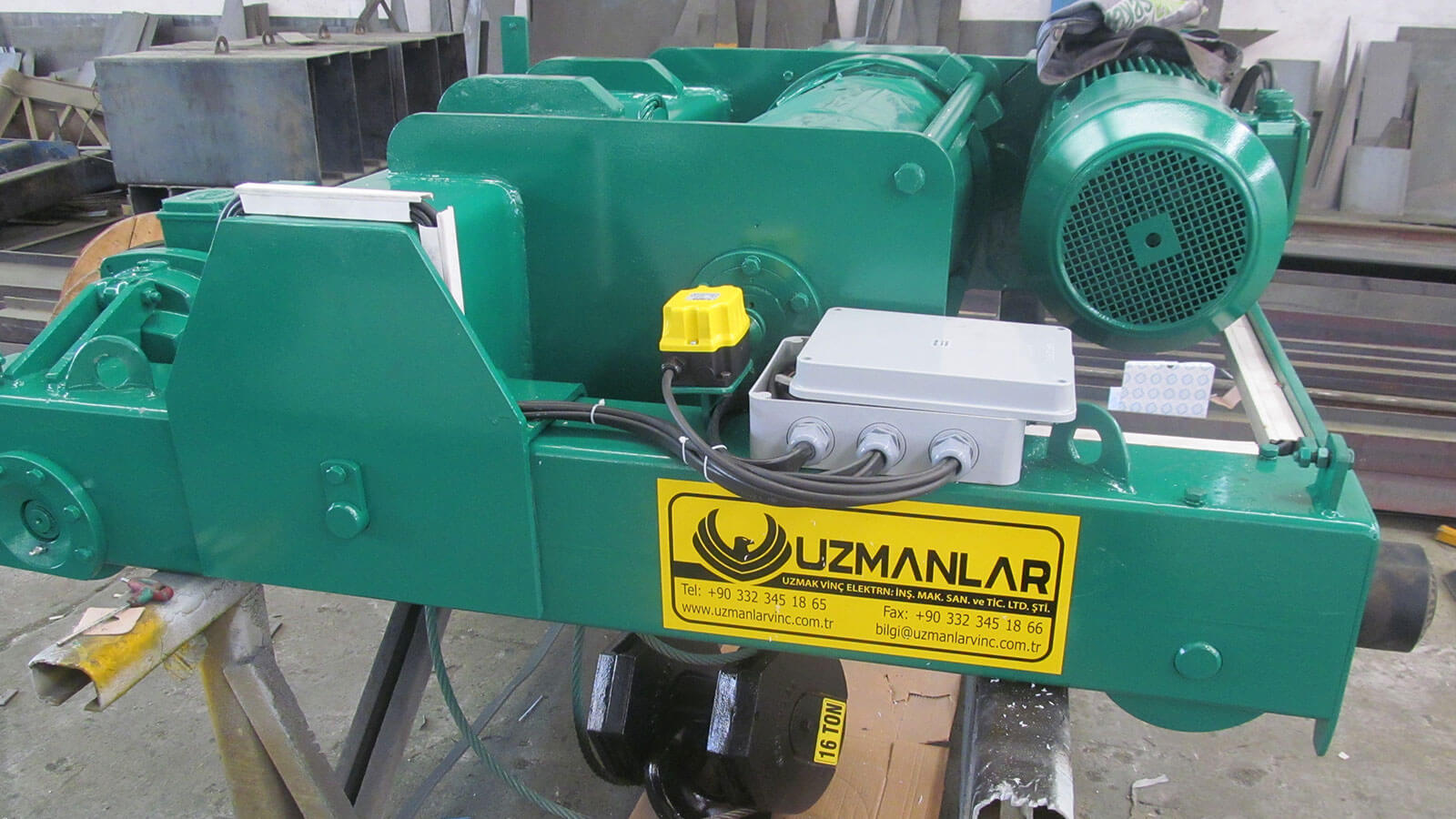

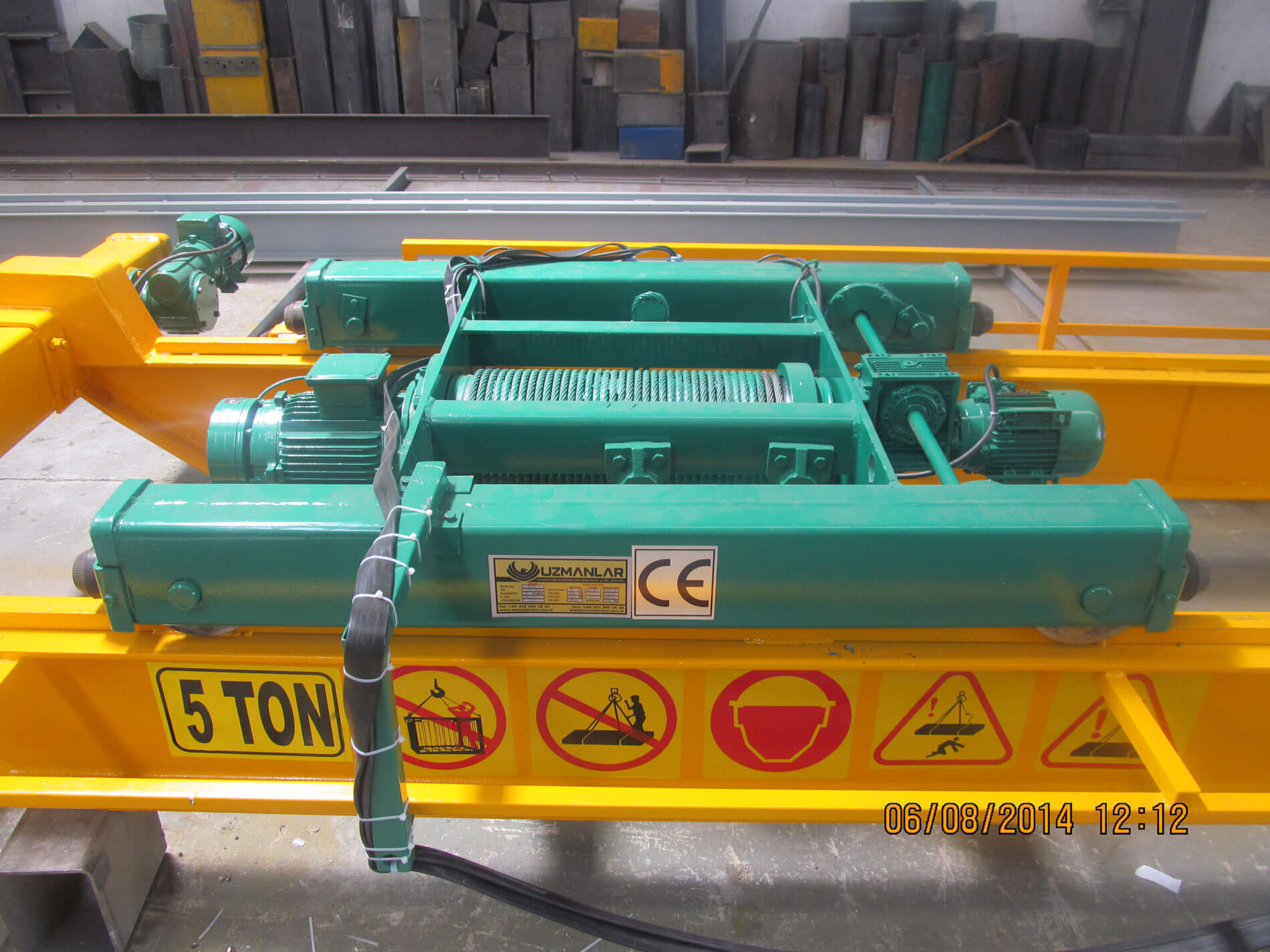

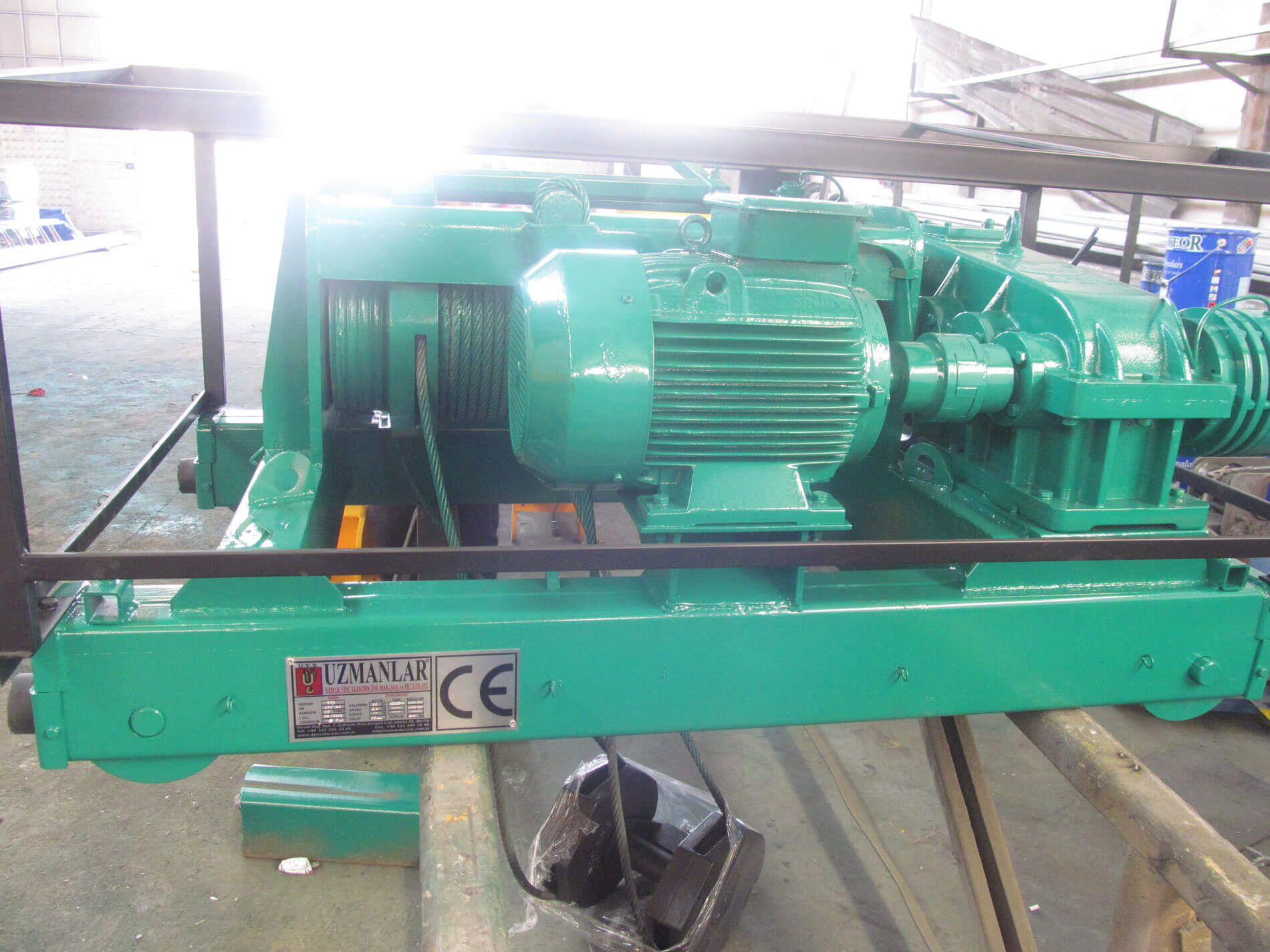

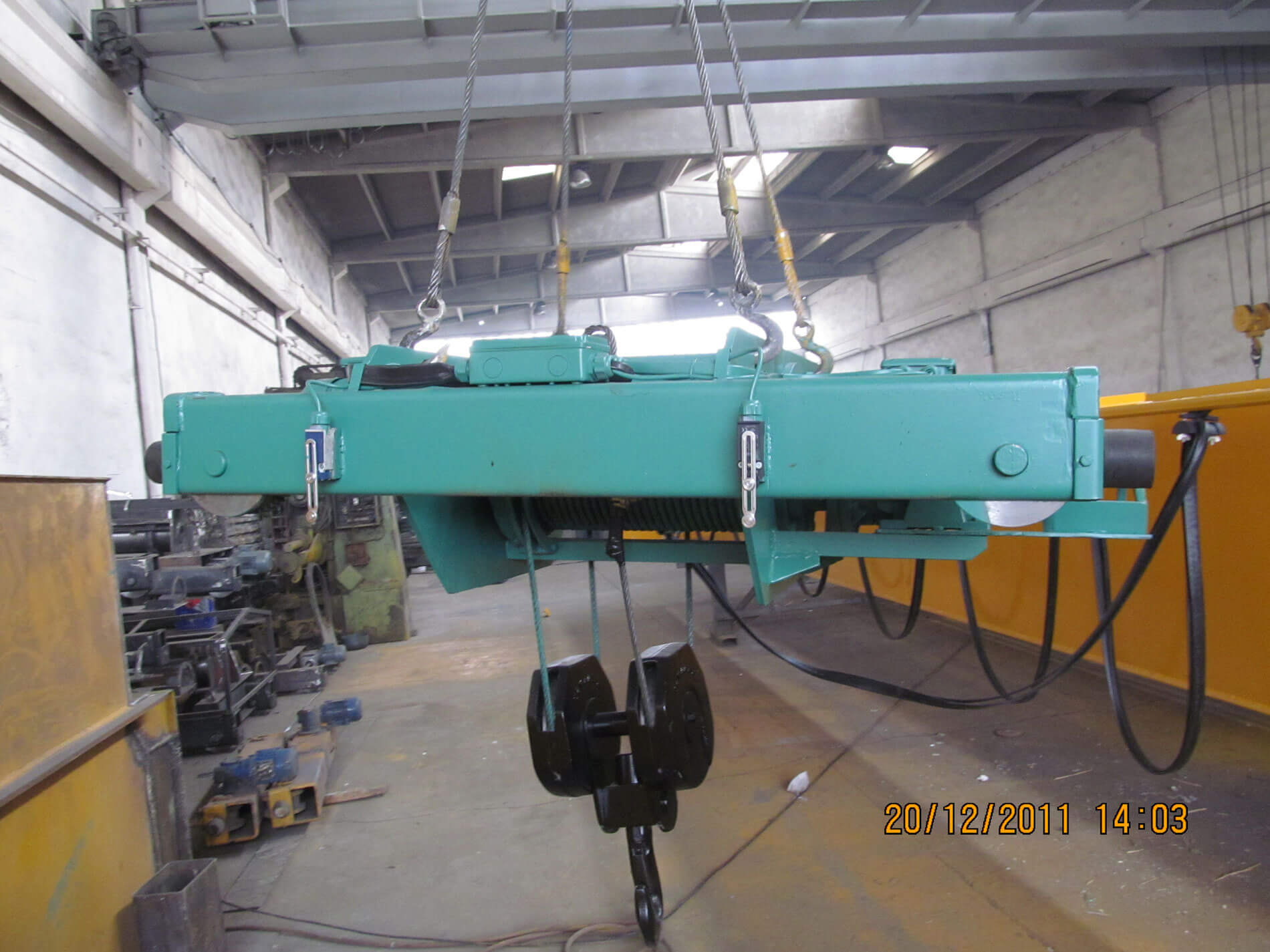

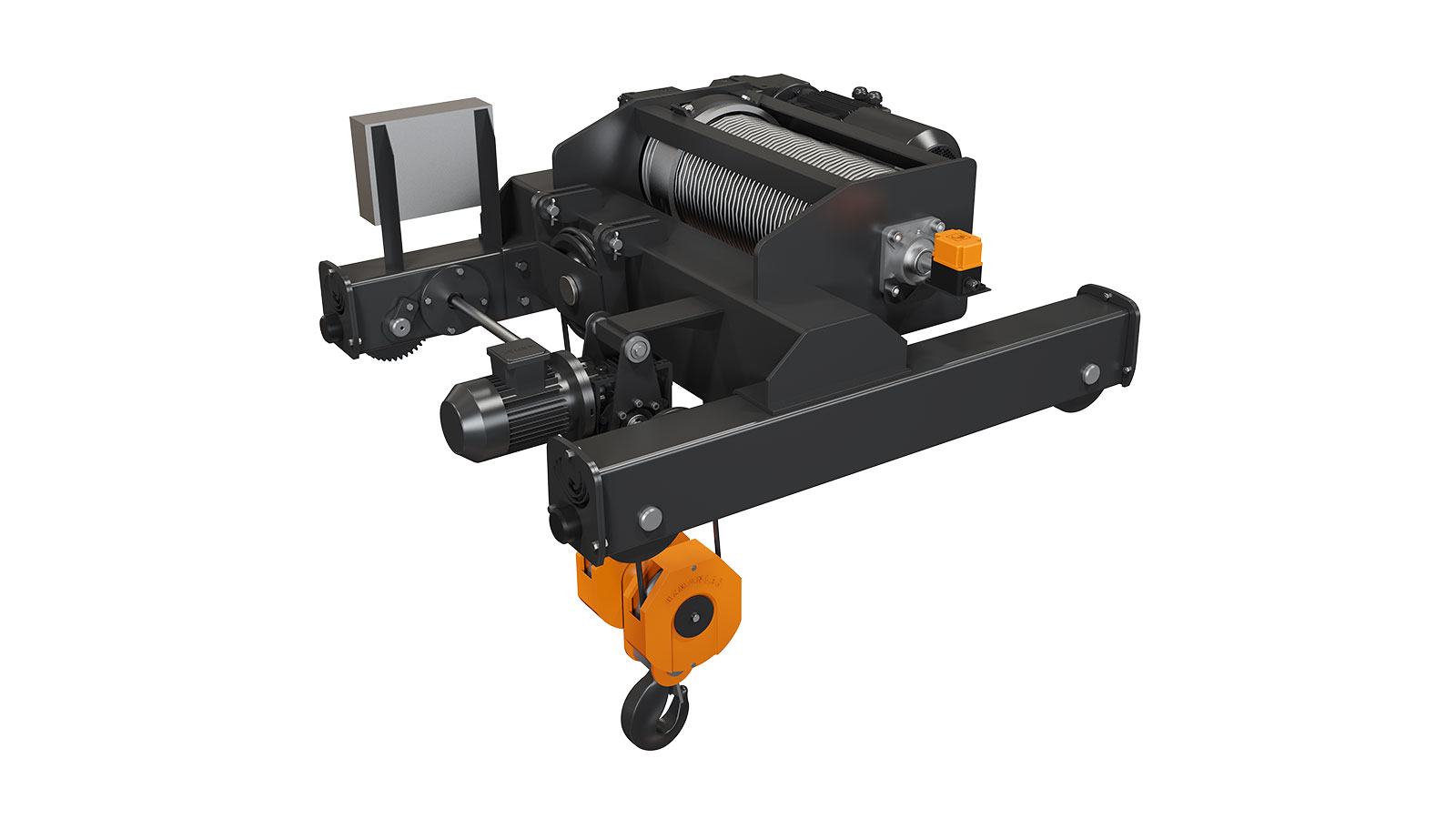

Trolley Cranes manufactured by Uzmanlar Crane are professional lifting systems designed for the safe, fast, and high-performance transportation of heavy loads in industrial facilities. They are produced in a standard capacity range from 3 tons to 100 tons, and can also be manufactured with custom capacity and lifting height options exceeding 100 tons according to specific project requirements.
All Trolley Crane models are designed in compliance with FEM standards and DIN norms; offering long service life with their durable body structure, high-safety components, and precise engineering details. With high lifting power, quiet operation, and minimal maintenance requirements, they provide a solution that enhances operational efficiency.
Trolley Cranes are widely used in machinery manufacturing, marble processing, glass industry, iron and steel industry, logistics, production lines, and various other heavy industry sectors. Through modern technologies used in our production process, robust travel mechanisms, high-safety braking systems, and advanced control options, customized solutions are developed for each project.
Ideal for facilities requiring high load capacity across wide spans, Trolley Cranes deliver maximum efficiency with both standard production and project-based custom manufacturing options.

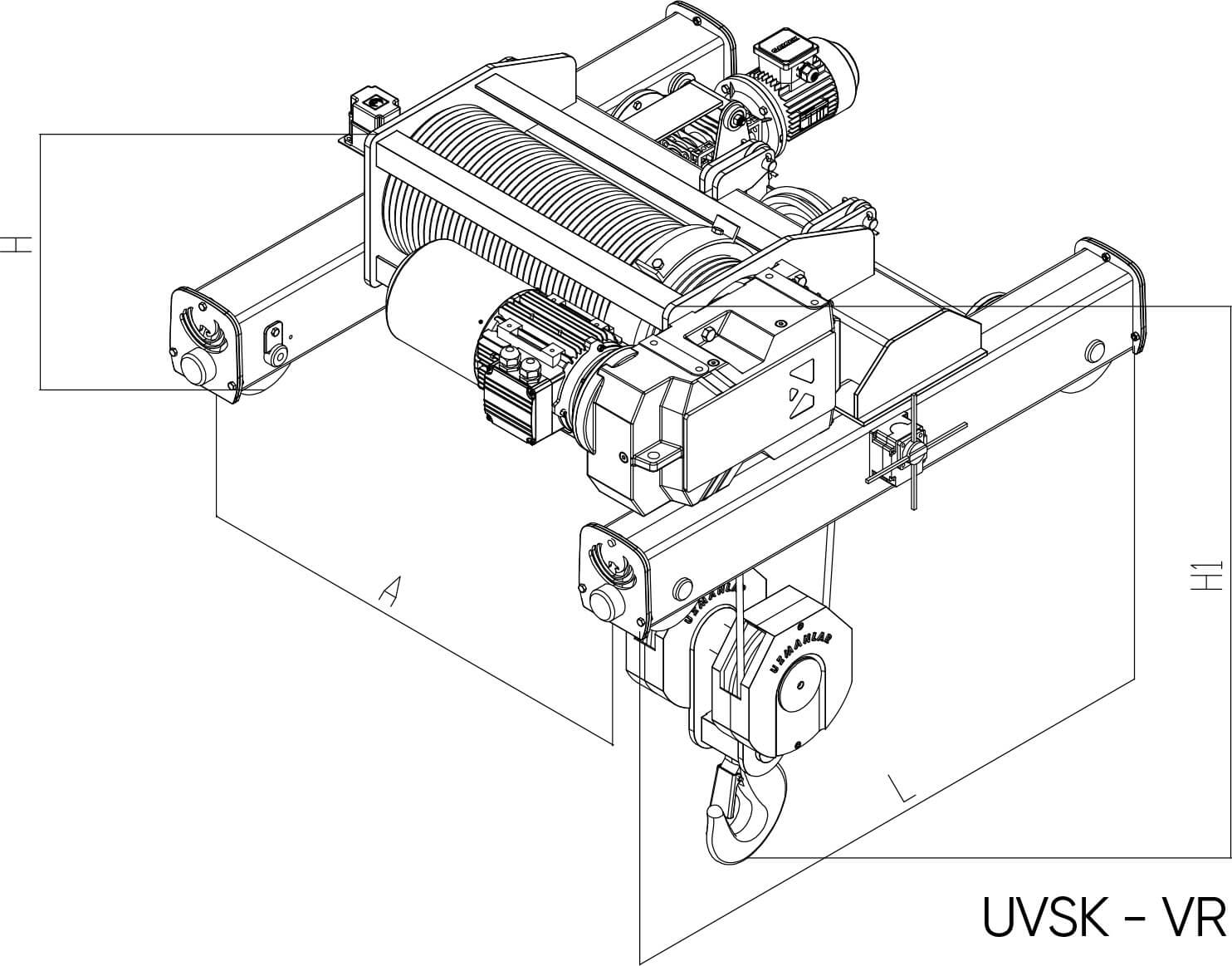

| Q (TON) | A (mm) | L (mm) | H (mm) | H1 (mm) |
| 2 | 900 | 1000 | 400 | 650 |
| 3 | 900 | 1000 | 425 | 675 |
| 5 | 1000 | 1200 | 480 | 800 |
| 7,5 | 1000 | 1200 | 480 | 800 |
| 10 | 1000 | 1300 | 570 | 920 |
| 15 | 1000 | 1500 | 630 | 970 |
| 20 | 1250 | 1600 | 760 | 1400 |
| 25 | 1250 | 1800 | 810 | 1500 |
| 32 | 1400 | 2000 | 810 | 1600 |
| 40 | 1400 | 2000 | 820 | 1700 |
| 50 | 1500 | 2200 | 950 | 1900 |
| Capacity (TON) | Type | Working Class (FEM/ISO) | Lifting Height | Hook Hızı (m/min) | Traversing Hızı (m/min) | Hook Motor Power(kW) | Traversing Motor Power(kW) | Rope Falls | Rope Diameter (mm) | Drum Diameter (mm) | Wheel Diameter (mm) | Hook |
| 2 | UVS-K2 | 3m / 6M | 8 | 4,8 | 14 | 2,2 | 0,25 | 1/2 | 8 | Ø 220 | Ø 140 | NR 1 |
| 3 | UVS-K3 | 3m / 6M | 8 | 4,4 | 14 | 2,2 | 0,37 | 1/4 | 8 | Ø 220 | Ø 140 | NR 1 |
| 5 | UVS-K5 | 3m / 6M | 8 | 4,2 | 14 | 4 | 0,75 | 1/4 | 12 | Ø 270 | Ø 180 | NR 2,5 |
| 7,5 | UVS-K7,5 | 3m / 6M | 8 | 3,8 | 14 | 5,5 | 1,1 | 1/4 | 12 | Ø 270 | Ø 180 | NR 4 |
| 10 | UVS-K10 | 3m / 6M | 8 | 3,8 | 14,5 | 7,5 | 1,5 | 1/4 | 14 | Ø 270 | Ø 200 | NR 5 |
| 15 | UVS-K15 | 3m / 6M | 8 | 3,3 | 14,5 | 11 | 2,2 | 1/4 | 16 | Ø 325 | Ø 200 | NR 6 |
| 20 | UVS-K20 | 3m / 6M | 8 | 3,3 | 15 | 15 | 3 | 1/4 | 18 | Ø 325 | Ø 300 | NR 6 |
| 25 | UVS-K25 | 3m / 6M | 8 | 3,1 | 15 | 18,5 | 4 | 1/4 | 20 | Ø 325 | Ø 300 | NR 8 |
| 32 | UVS-K32 | 3m / 6M | 8 | 3,1 | 14 | 18,5 | 5 | 1/6 | 20 | Ø 410 | Ø 300 | CAST HOOK |
| 40 | UVS-K40 | 3m / 6M | 8 | 3 | 14 | 22 | 5,5 | 1/8 | 20 | Ø 410 | Ø 300 | CAST HOOK |
| 50 | UVS-K50 | 2m / 5M | 8 | 2,7 | 13 | 30 | 7,5 | 1/8 | 22 | Ø 410 | Ø 400 | CAST HOOK |
